4460 Sit Down Forklift
4460 Sit Down Forklift Counterbalanced Lift Truck
-
-

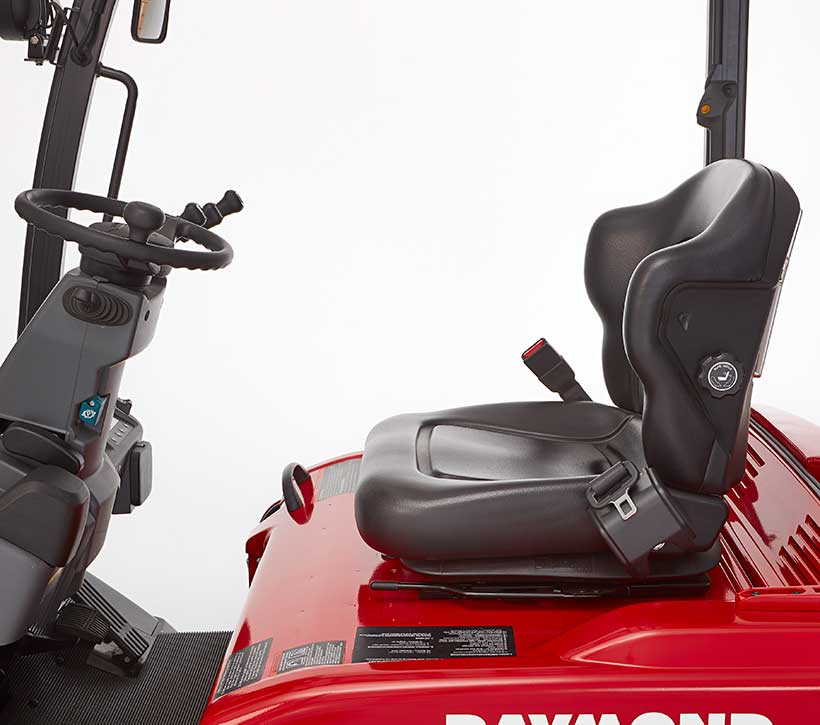

Optimized Operator Comfort
The spacious compartment features a fully adjustable seat and tilt steering wheel column with memory adjustment.Optimized Operator Comfort -
Increased Productivity and Decreased Product Damage
With an open-view 3-stage mast offering a clear line of sight to the load (TT Mast only).Increased Productivity and Decreased Product Damage -
Programmable Speeds
Provide superior flexibility and reliability to suit different operators and applications.Programmable Speeds -
Pallet Positioning
Integral sideshift allows sideways movement of the forks to handle loads that may not be aligned with the truck.Pallet Positioning -
Faster Battery Changes
And less downtime with optional right hand side battery rollout.Faster Battery Changes

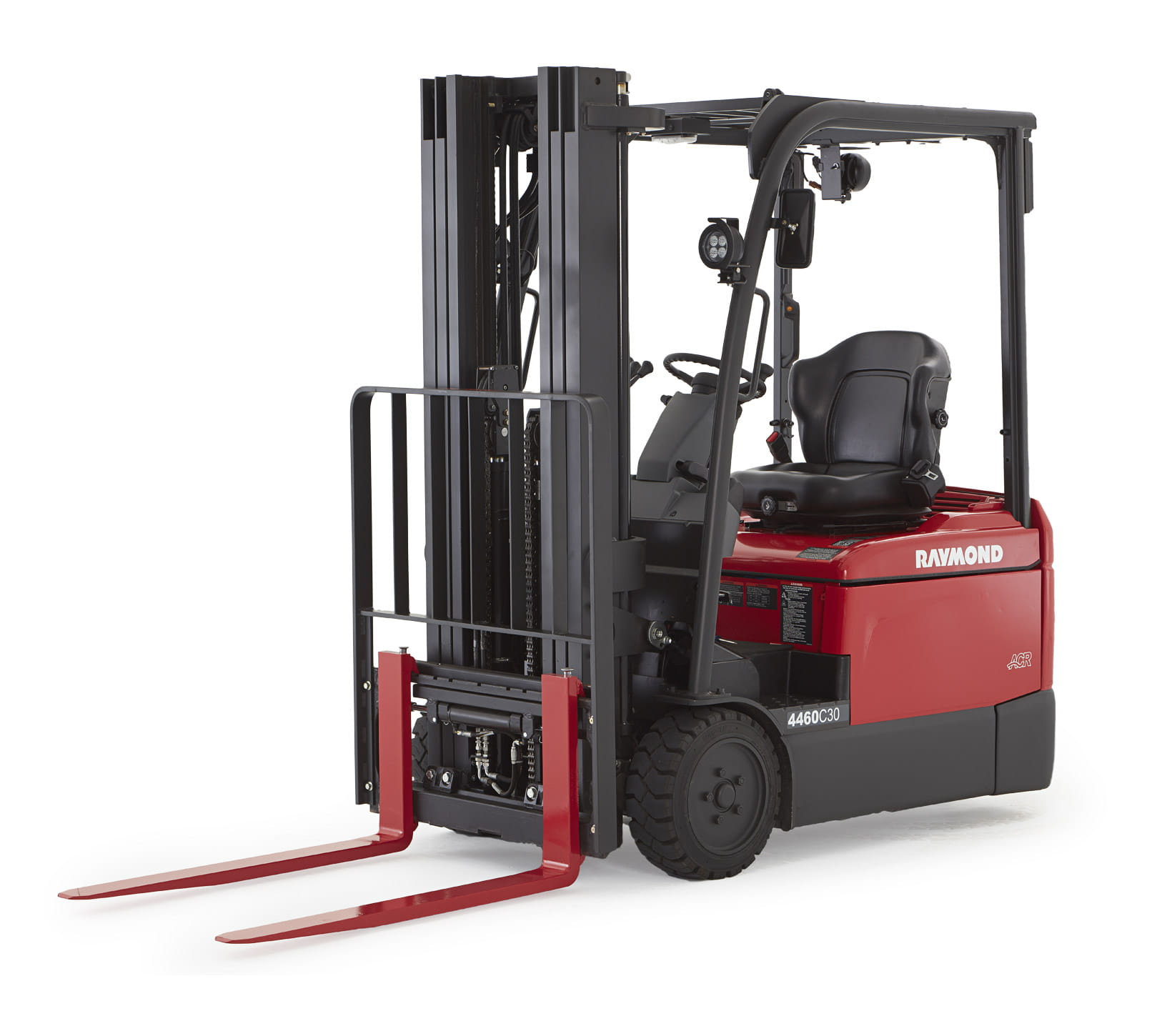

A Workhorse for your Workflow
The Raymond 4460 sit down forklift features a low profile and excellent operator visibility for exceptional performance and productivity in confined spaces. This electric forklift is ideal for tasks in trailers, ramps and stacking areas.
- Battery: 36 volts or 48 volts
- Capacity: 3,000 lbs. to 4,000 lbs.
- Max Height: 3-stage mast: 227", 4-stage mast: 276"
- Unloaded Travel Speed: 9.9 mph** (36-volt), 9.6-10.2 mph** (48-volt)
-
Turning Radius*:
55.1" - 62.8"**
*includes integral side shift
**based on capacity
Built to Perform
-

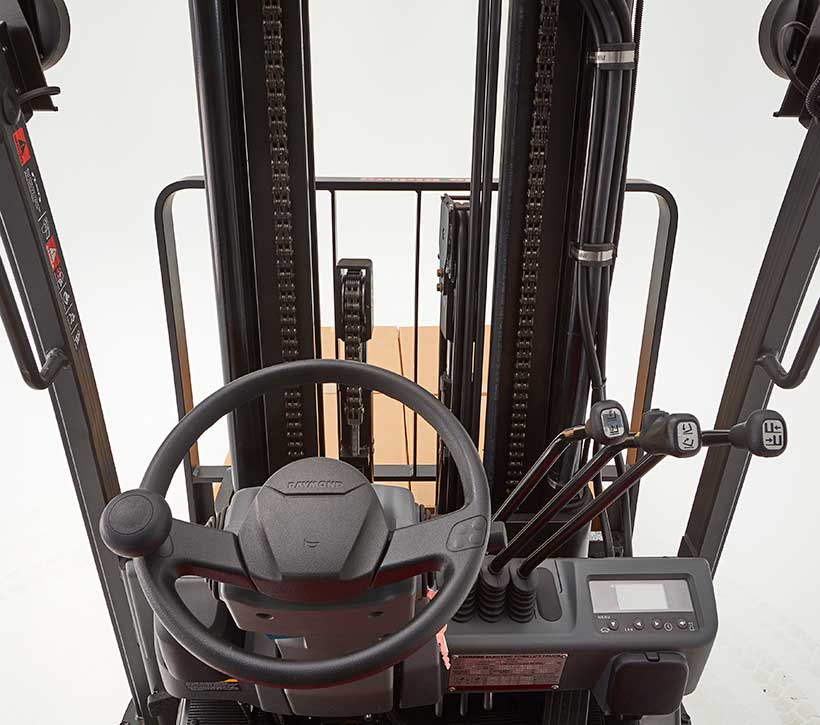

Programmable Performance
Allows vehicle performance to be set to the desired speed, reducing product damage and increasing confidence and productivity. -
ACR System
Provides quicker acceleration and hydraulic braking, faster lift and lower speeds, and smoother direction changes for more efficient load handling and movement. -
Load Handling
Provides more precise load control with quick response steering and smooth hydraulics. -

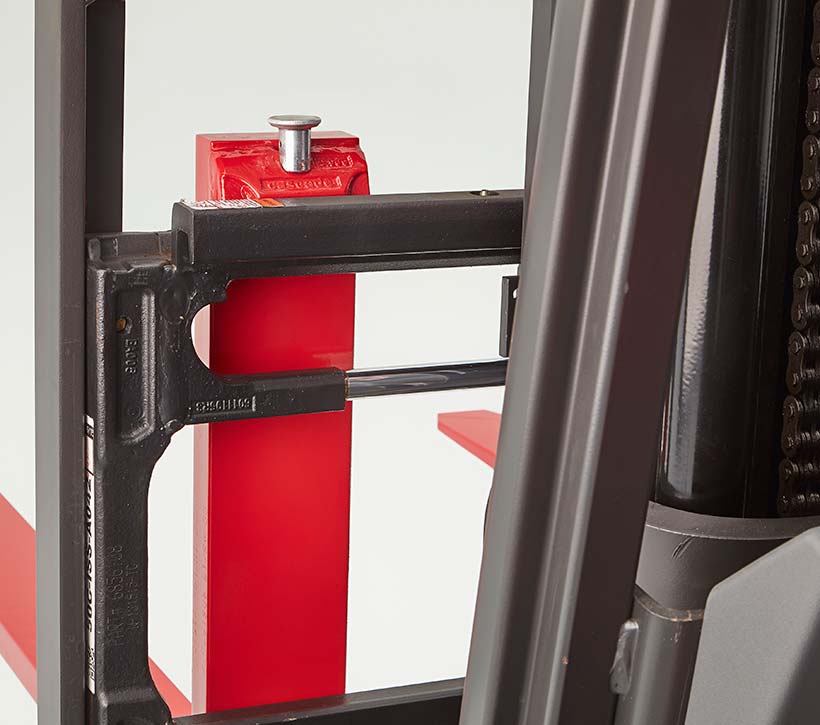

Integral Sideshift
Allows side-to-side movement, permitting a load to be picked up or put away even if it’s not perfectly aligned with the truck.
-
ACR System
Our exclusive ACR System for both drive and lift provides, faster, smoother operation. -
Battery Commonality
The assist damper design holds the hood making it easily accessible to install or remove batteries. -
Integral Sideshift
Allows side-to-side movement, permitting a load to be picked up or put away even if it’s not perfectly aligned with the truck.
-
Foot Activated Brake
Reduces the need to lean forward to activate and disengage the brake, increasing operator comfort. -
Full Suspension Seat
Full suspension seat with lumbar and tilt adjustments enhance operator comfort and productivity. -
Hydraulic Control Levers
Allow the operator to perform multiple commands simultaneously. -
Operator Compartment
Provides left or right entry into a spacious compartment with a fully adjustable seat and tilt steering wheel. -

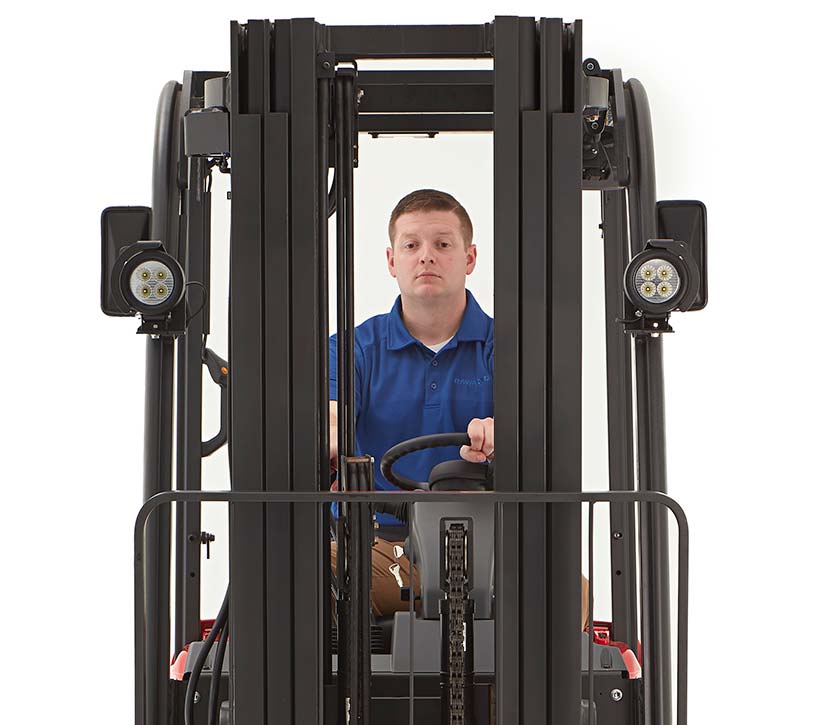

Visibility
Raymond 4000 Series sit down forklifts provide the visibility needed to maximize operator confidence, and minimize damage to racks, products, and facilities.
-
Cowl Positioning
Conveniently mounted on the cowl, the hydraulic control levers allow the operator to gain access from the right or left side of the truck. -
Specialized Load Handling
The quick response steering and smooth hydraulics provide more precise load control. -
Integral Sideshift
Provides sideways movement of the carriage, permitting a load to be picked up or put away even if it is not perfectly aligned with the truck.
-

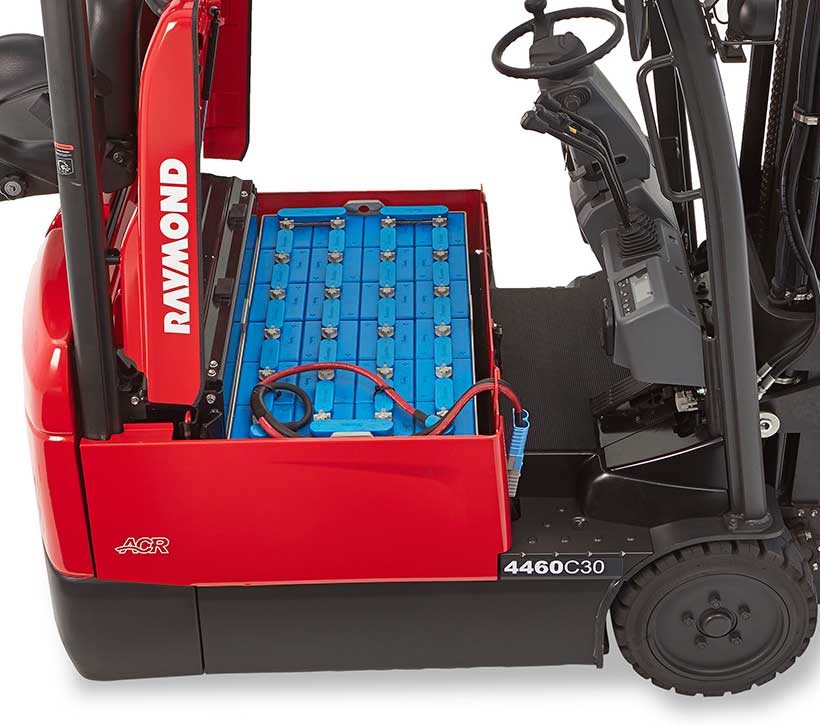

Battery Commonality
Run more efficiently—and cost-efficiently—by sharing batteries with your existing fleet. (4460 has unique 48 or 36 volt). -
No-tool Floorboard
Can be removed with no tools, allowing easy access to the hydraulic tank. -
AC Drive and Lift Motors
Fewer wearable parts deliver more uptime, more performance per battery charge and lower maintenance costs.
-
Cold Storage
Protects sensitive lift truck control systems with hydraulic, mechanical and electrical components that are matched to different temperature levels. -
Work Lights
Optional work lights may reduce operator eye strain and increase productivity. Our high-intensity work lights keep your operation running smoothly in low light conditions. -
UL EE Label
This lift truck complies with Underwriters Laboratories (UL) 583. Raymond Type E and EE trucks are UL-tested and UL-certified and designed and manufactured to operate in classified locations as defined in the National Fire Protection Association's NFPA 505. -
Attachments
Specialized load handling attachments such as fork positioners, slipsheets and carton clamps to handle your load requirements.
-
Specialty Rack
Raymond forklift trucks can interface with every industry-standard warehouse rack. If you have selective, drive-in/drive-thru, cantilever, pallet flow or push-back racks, Raymond has a solution that will help maximize your storage capacity and productivity.
-
Bulk Storage
Raymond offers a wide range of fork trucks that efficiently maneuver through bulk storage areas. With hundreds of combinations of heights, capacities and features as well as a great range of operational applications, Raymond stand up fork trucks can meet your bulk storage needs, no matter how specialized.
-
Cold Storage
Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions, to test and prove our systems in extreme cycles of freezing and thawing.
-
Truck Loading and Unloading
Improve your dock operation productivity with Raymond sit down fork lifts. Our counterbalanced fork trucks are ideal for operations that require breakdown of pallets removed from trailers, long runs to P&D stations, or a combination of both. Raymond forklifts offer a wide variety of operating positions that are engineered to enhance driver comfort and reduce fatigue for this specific application.
-
Attachments
Raymond counterbalanced sit down forklift trucks can use specialized load handling attachments such as slip sheets, and carton clamps.
